| Name: | Hot wedge welding machine |
| Model: | SD-W200 |
| Voltage: | AC-220V,50/60HZ,single phase |
| Power: | 3000W |
| Speed: | 1-18m/min |
| Air pressure: | 0.35-05Mpa |
| Max hot air temperature: | 700 ℃ |
| Max welding width: | 45mm |
| Roller width: | 20/30/40/50mm |
| Up roller lift: | 20-35mm |
| Suitable fabric: | PVC, Polyurethane, Polyethylene, Vinyl and other hot melt type fabric |
| Application: | Tent house,Tarpaulin,inflatable products,outdoor banner etc |
| Dimension: | 1500x750x1600mm |
| Net weight: | 260kg |
| Inquiry |
Product Description
Features:
1.Precise control by PLC and touch screen
2.Up and down rollers speed could be set in difference to avoid wrinkle welding
3.Both overlap welding and hemming welding are available
4.Max welding width could be up to 45mm
5.Auto compensation and reverse to avoid empty tapping
6.Double pedals control,more easy and comfortable
7.24h continuous work to have more output
8.Auto tape feeding and cutting to save more tape
9.Special design of down arm is suitable for various product welding

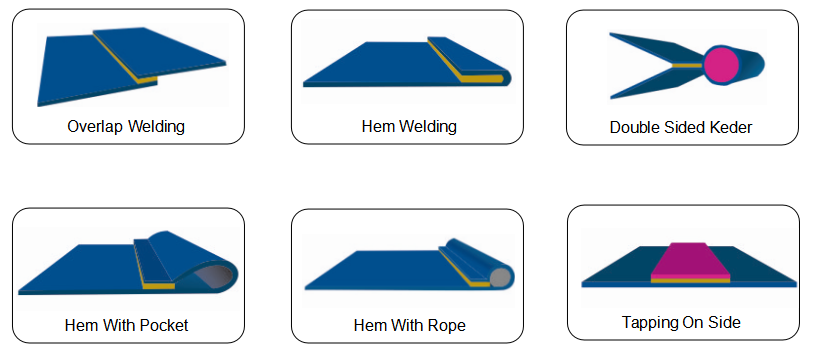

Welding Functions:
Overlape welding,Hem welding,Hem with pocket,Double sided keder,Tapping on side
Application:

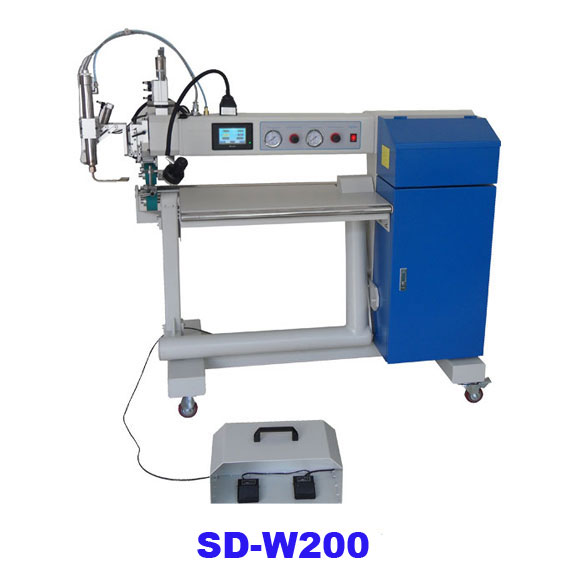

SD-W200 hot wedge welding machine is widely used for tarpaulin welding,PVC tent house welding,inflatable products welding,swimming pool welding duct welding and other special products which need joint fabric by direct welding without any sewing.This hot wedge welder often applied in PVC fabric,PE fabric,Vinyl Fabric and other fabrics which could be hot melt.
