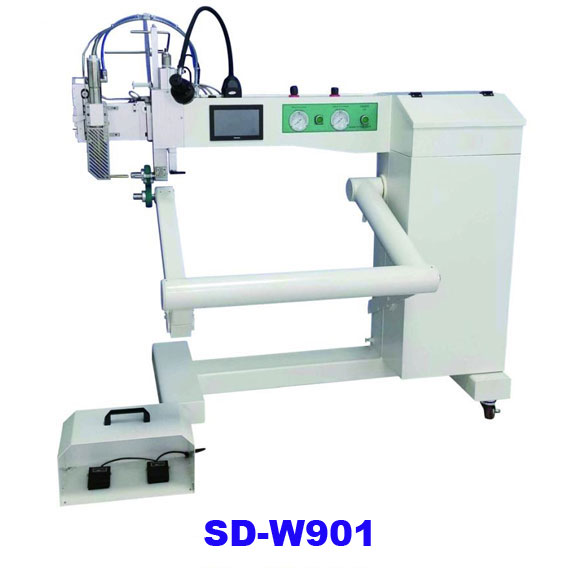

• PVC automatic welding machine

Name:PVC automatic welding machine
Model:SD-W901
Voltage:AC-220V,50/60HZ,single phase
Power:3000W
Speed:1-18m/min
Air pressure:0.35-05Mpa
Max hot air temperature:700 ℃
Max welding width:50mm
Roller width:20/30/40/50mm
Up roller lift:20-35mm
Suitable fabric:PVC, Polyurethane, Polyethylene, Vinyl and other hot melt type fabric
Application:Tent house,Tarpaulin,inflatable products,outdoor banner etc
Dimension:1500x750x1600mm
Net weight:245kg
Inquiry

Product Description


Features:

1.Precise control by PLC and touch screen

2.Aduto adjust for nozzile postion,easy to change rollers and nozzles

3.Up and down rollers speed could be set in difference to avoid wrinkle welding

4.Multic welding functions,as overlap welding,hem welding and tapping

5.Max welding width could be up to 50mm

6.Auto compensation and reverse to avoid empty tapping

7.Double pedals control,more easy and comfortable

8.24h continuous work to have more output

8.Auto tape feeding and cutting to save more tape

9.Special design of down arm is suitable for various product welding

Welding Functions:

Overlape welding,Hem welding,Hem with pocket,Double sided keder,Tapping on side

Application:

SD-W901 hot welding machine is widely used for tarpaulin welding,PVC tent house welding,inflatable products welding,swimming pool welding duct welding and other special products which need joint fabric by direct welding without any sewing.This hot air welder often applied in PVC fabric,PE fabric,Vinyl Fabric and other fabrics which could be hot melt.
