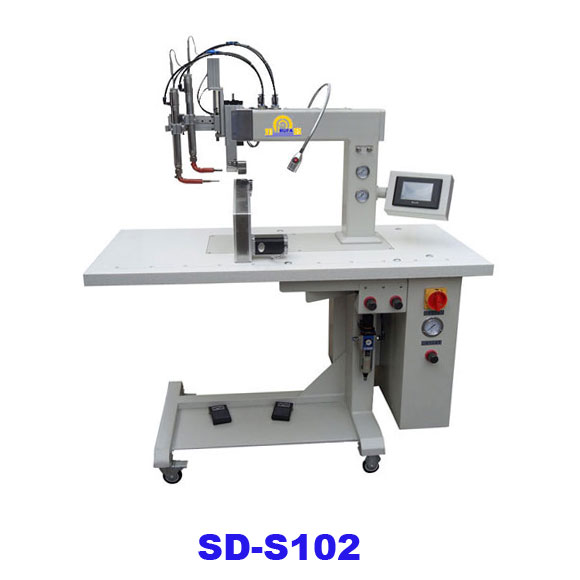

| Name: | Hot air overlap bonding machine |
| Model: | SD-S102 |
| Voltage: | AC-220V,50/60HZ,single phase |
| Power: | 1000W |
| Hot air temperature: | 0-300℃ |
| Speed: | 0-9m/min |
| Air pressure: | 0.35-0.5Mpa |
| Feeding type: | By double belts |
| Belt width: | 25mm |
| Dimension: | 1200x550x1300mm |
| Net weight: | 105kg |
| Inquiry |
Product Description
Features:
1.Precise control by PLC and touch screen
2.Data memory functions could stock 10pcs data
3.Dependent adjust of temperature for up and down belt,nozzle and tape groove
4.Double nozzles design promotes working efficiency
Application:
SD-S102 Hot air overlap bonding machine is widely used for seamless underwear,seamless T-shirt,seamless swimming wear and other seamless garments overlap bonding without any sewing to joint two pieces of fabric.
