| Name: | Hot air seam sealing machine for raincoat,PPE and tent |

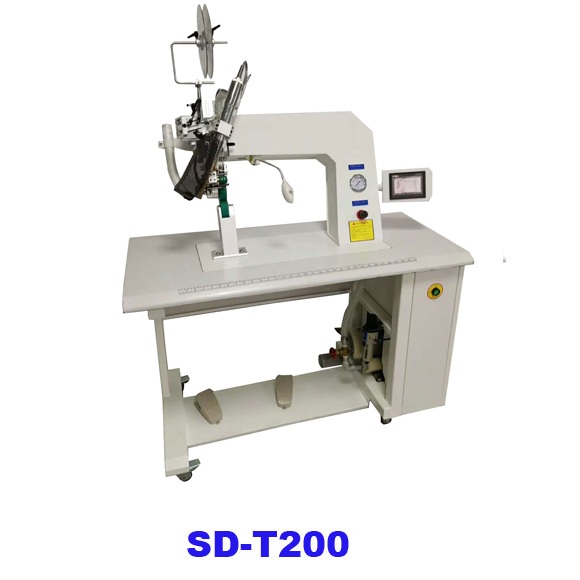

| Model: | SD-T200 |
| Voltage: | AC-220V,50/60HZ,single phase |
| Power: | 2000W |
| Speed: | 1-24m/min |
| Air pressure: | 0.35-05Mpa |
| Max hot air temperature: | 700 ℃ |
| Max tapping width: | 22mm |
| Roller width: | 25.4mm |
| Up roller lift: | 20-35mm |
| Suitable tape: | All kinds of hot melt tape |
| Application: | Seam sealed raincoat,tent,jacket,waterproof cover etc |
| Dimension: | 1300x600x1600mm |
| Net weight: | 160kg |
| Inquiry |
Product Description
Features:
1.Precise control by Panasonic PLC and touch screen
2.Up and down rollers are synchronous
3.Auto compensation and reverse to avoid empty tapping
4.Double pedals control,more easy and comfortable
5.24h continuous work to have more output
6.Auto tape feeding and cutting to save more tape
7.Special design of low arm,suitable for various sizes of waterproof products seam sealing.
Application:
SD-T200 hot air seam sealing machine is widely used in PPE seam sealing,raincoat seam sealing,tent seam sealing,waterproof cover seam sealing like car cover etc,normal quality jacket seam sealing,sportswear seam sealing etc.

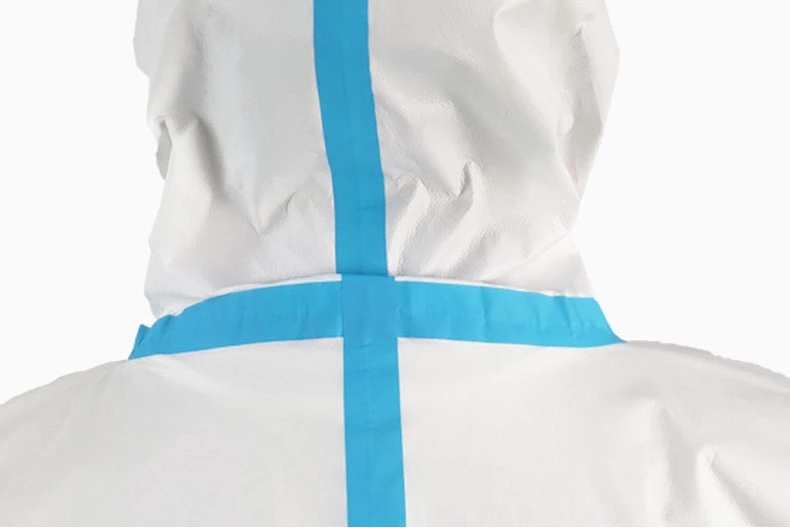

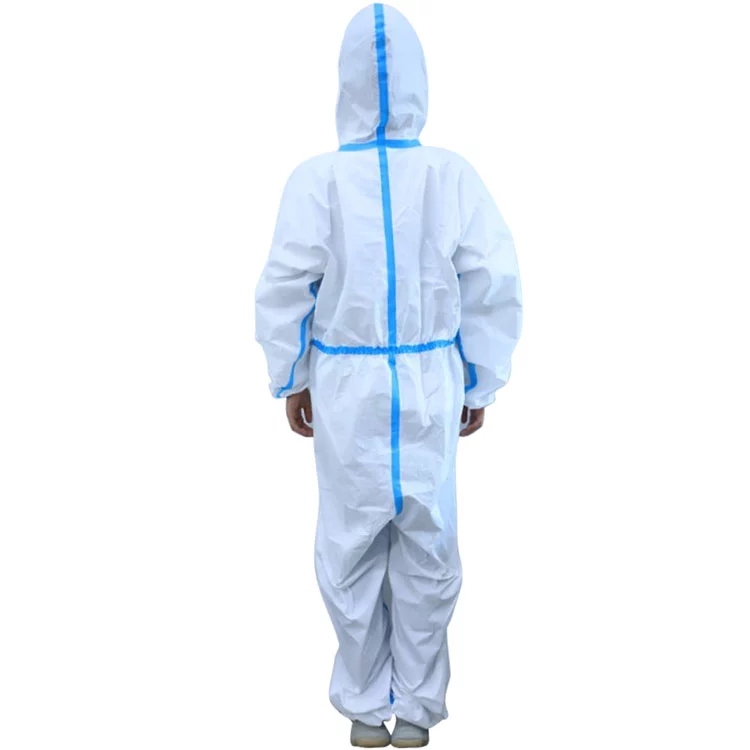

Seam sealing performance:
Guestbook
Related Products
SD-T101 hot air seam sealing machine is capable of PPE suit seam sealing and other waterproof garment seam sealing.It has a special L type arm,helping operators have big working space in PPE protective suit seam sealing.And suitable for both EVA tape and
SD-T100 hot air sealing machine is better for high quality jacket seam sealing and other high quality waterproof garments seam sealing.It has two exchangeable arms to help you have a good seam sealing in cuff position or other barrel sharp position seams
SD-T500 hot air seam sealing machine comes with L arm,which is better for barrel sharp like cuff to go through and have its seam sealed,especially for down jacket seam sealing or other thick garments seam sealing.
