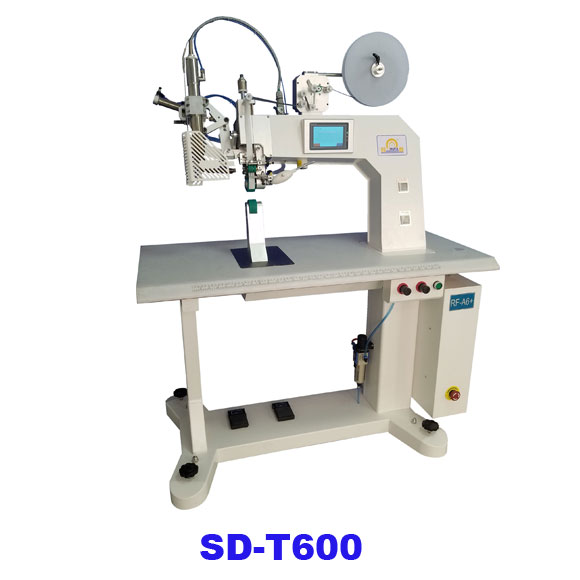

Name: | Hot air seam sealing machine for jacket |
Model: | SD-T600 |
Voltage: | AC-220V,50/60HZ,single phase |
Power: | 3000W |
Speed: | 1-24m/min |
Air pressure: | 0.35-05Mpa |
Max hot air temperature: | 700 ℃ |
Max tapping width: | 22mm |
Roller width: | 25.4mm |
Up roller lift: | 20-35mm |
Suitable tape: | All kinds of hot melt tape |
Application: | Seam sealed raincoat,tent,jacket,waterproof cover etc |
Dimension: | 1200x600x1550mm |
Net weight: | 125kg |
Inquiry |
Product Description
Features:
1.Precise control by PLC and touch screen
2.Up and down rollers speed could be set in difference to avoid wrinkle tapping
3.Limited length of seam sealing tape function saves 15% tape consumption
4.Data memory function to keep the same seam sealing performance
5.Auto compensation and reverse to avoid empty tapping
6.Double pedals control,more easy and comfortable
7.24h continuous work to have more output
8.Auto tape feeding and cutting to save more tape
9.Special design of low arm,suitable for various sizes of waterproof products seam sealing
Application:
SD-T600 hot air seam sealing machine is widely used in raincoat seam sealing,tent seam sealing,waterproof cover seam sealing like car cover etc,normal quality jacket seam sealing,sportswear seam sealing etc.It could be suitable for both thin and thick hot melt seam sealing tape and both of tapes will have a very smooth tapping without wrinkle.So we stronly recommend this one for high quality outdoor jacket seam sealing and other high quality waterproof garments seam sealing.
