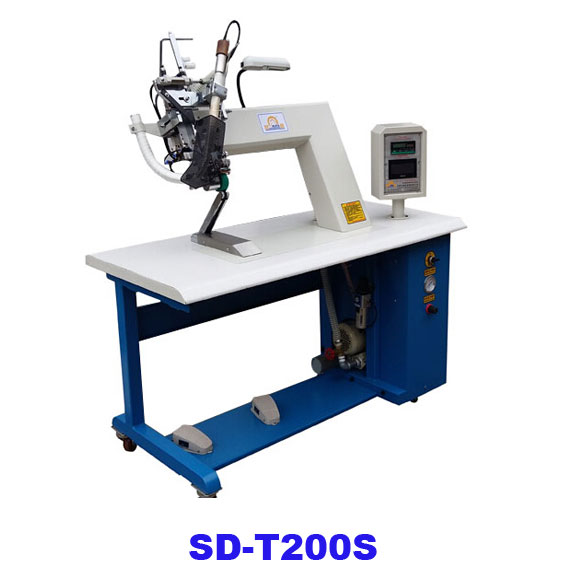

| Name: | Hot air seam sealing machine for shoes |
| Model: | SD-T200S |
| Voltage: | AC-220V,50/60HZ,single phase |
| Power: | 2000W |
| Speed: | 1-24m/min |
| Air pressure: | 0.35-05Mpa |
| Max hot air temperature: | 700 ℃ |
| Max tapping width: | 22mm |
| Roller width: | 25.4mm |
| Up roller lift: | 20-35mm |
| Suitable tape: | All kinds of hot melt tape |
| Application: | Waterproof shoes seam sealing |
| Dimension: | 1300x600x1600mm |
| Net weight: | 160kg |
| Inquiry |
Product Description
Features:
1.Precise control by Panasonic PLC and touch screen
2.Up and down rollers are synchronous
3.Auto compensation and reverse to avoid empty tapping
4.Double pedals control,more easy and comfortable
5.24h continuous work to have more output
6.Auto tape feeding and cutting to save more tape
7.Special for waterproof shoes seam sealing
Application:

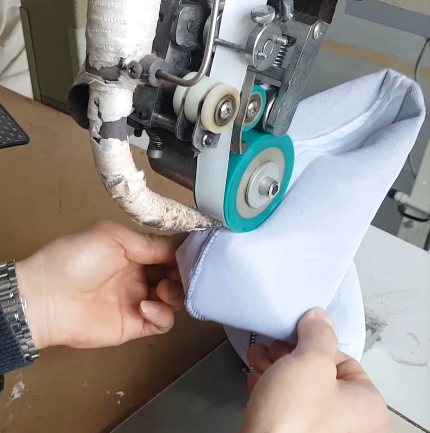

SD-T200S hot air seam sealing machine is special designed for waterproof shoes seam sealing.It could be applied for all hot melt seam sealing tape.
Guestbook
Related Products
SD-T101 hot air seam sealing machine is capable of PPE suit seam sealing and other waterproof garment seam sealing.It has a special L type arm,helping operators have big working space in PPE protective suit seam sealing.And suitable for both EVA tape and
SD-T200 hot air seam sealing machine is used for raincoat,PPE and tent seam sealing to make them waterproof.Its suitable for PU tape,PPE seam sealing tape,PVC tape,three layer tape and other hot melt wateproof seam sealing tape.We supply both seam sealing
SD-T100 hot air sealing machine is better for high quality jacket seam sealing and other high quality waterproof garments seam sealing.It has two exchangeable arms to help you have a good seam sealing in cuff position or other barrel sharp position seams
